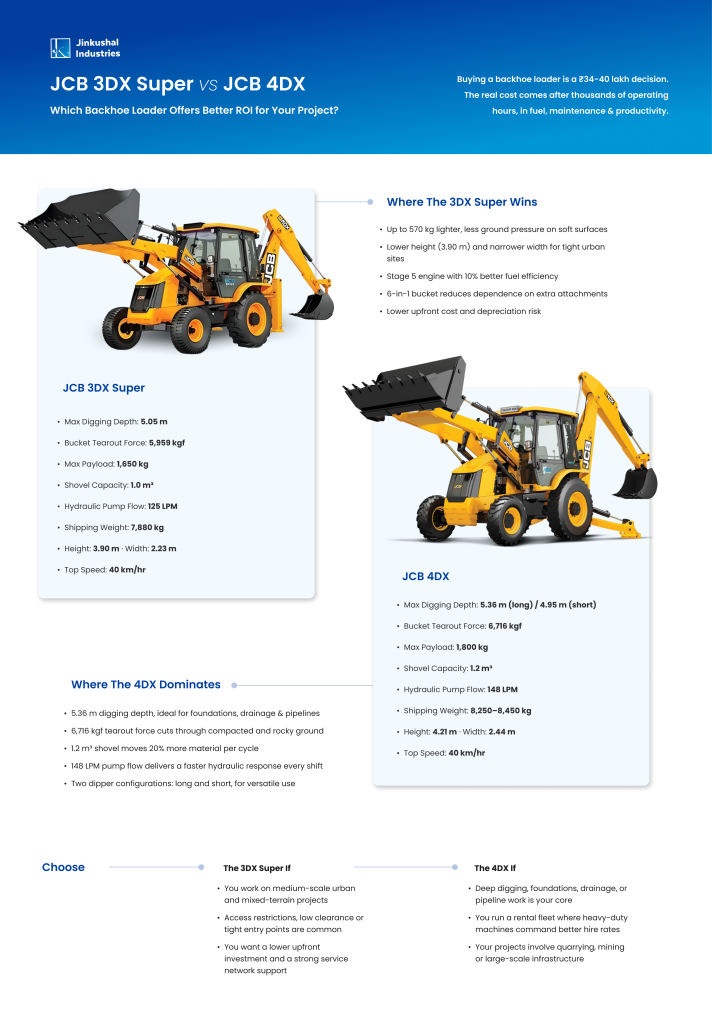

JCB 3DX Super vs 4DX: Which Backhoe Loader Offers Better ROI for Your Project?
While shopping for the best backhoe loader for construction, you’re spending around ₹34 to ₹40 lakh for a machine, which is a serious capital investment for any business. The price tag is just the tip of the iceberg; the real cost of ownership comes after thousands of operating hours, via fuel consumption, maintenance costs, hydraulic efficiency & profitability.
The JCB 3DX Super & 4DX are among the most popular backhoe loader models. Both are highly preferred by contractors & fleet owners for their prowess, durability, & cutting-edge features. However, both differ by cost & capabilities, plus each performs better in different scenarios. With that said, a proper JCB backhoe loader comparison blog covering the JCB 3DX Super vs 4DX comparison will help you buy the best backhoe for your requirements.
JCB Backhoe Loader Comparison: JCB 3DX Super vs 4DX
JCB 3DX Super Specifications
The JCB 3DX Super leads JCB India’s backhoe loader lineup. This model is a favourite among folks looking for raw power & efficiency. The 3DX Super packs a robust Stage 5 engine, 6-in-1 bucket, advanced hydraulics & high durability. Operators & fleets also benefit from modern emission compliance & 10% better fuel efficiency with the Stage 5 engine, plus class-leading safety. It can easily handle material handling, digging, site preparation & challenging tasks.
Digging Performance
Max Digging Depth: 5.05 m
Bucket Tearout Force: 5,959 kgf
Dipper Tearout Force: 3,257 kgf
Standard Bucket Capacity 0.30 m³
Lift & Loading Capacity
Max lift capacity at full height: 3,050 kg
Max Payload Capacity: 1,650 kg
Max Shovel Capacity: 1.0 m³
Hydraulic System
Hydraulic System Volume: 92L
Maximum Pump Flow: 125 LPM
Machine Weight, Speed & Manoeuvrability
Shipping Weight: 7,880 kg
Top Speed: 40 km/hr
Dimensions
Ground Clearance: 0.31m
Length: 6.25m
Height: 3.90m
Width Over Bucket: 2.23m
JCB 4DX backhoe loader Specs
The JCB 4DX is the flagship backhoe loader & a popular name when you search for the “best backhoe loader for construction” in the market. This model is a beast when it comes to capabilities & impresses with its power, efficiency, cost-effectiveness, & durability, all of which are essential for long-term machine ROI. It comes with two dipper configurations, long & short, providing you a choice between deeper excavation tasks & higher bucket capacity.
Digging Performance
Max Digging Depth: 5.36 m (long) & 4.95 m (short)
Bucket Tearout Force: 6,716 kgf
Dipper Tearout Force: 4,551 kgf (long) & 4354 kgf (short)
Standard Bucket Capacity 0.32 m³ (long) & 0.40 m³ (short)
Lift & Loading Capacity
Max lift capacity at full height: 3,050 kg
Max Payload Capacity: 1,800 kg
Max Shovel Capacity: 1.2 m³
Hydraulic System
Hydraulic System Volume: 115L
Maximum Pump Flow: 148 LPM
Machine Weight, Speed & Manoeuvrability
Shipping Weight: 8,250 – 8,450 kg
Top Speed: 40 km/hr
Dimensions
Ground Clearance: 0.28m
Length: 6.355m
Height: 4.21m
Width Over Bucket: 2.44m
JCB Backhoe Loader Comparison: Where Each Wins?
Where The JCB 3DX Super Wins?
The JCB 3DX super offers a clear advantage in several key fronts, including machine weight, dimensions & site accessibility. With 7880 kg, it is up to 570 kg lighter than the JCB 4DX, which translates to lower ground pressure on soft surfaces, terrains and lower access restrictions on urban sites.
Its 3.90 m height & 2.23 m bucket width makes it a more practical choice for urban sites and places with overhead restrictions or tight entry points where the taller and wider 4DX struggle to operate. For fleet owners, contractors & operators running multiple-site urban works, this greater flexibility enables easier operations and reduced delays.
Where The JCB 4DX Dominates?
The JCB 4DX exhibits domination with its enhanced digging output, better loading capacity & superior hydraulic performance. Its 5.36 m digging depth outperforms the JCB 3DX Super’s 5.05 m. This makes it more ideal for deep excavations, foundation tasks, pipeline laying & drainage projects.
The high bucket tear-out force of 6,716 kgf & dipper tear-out force of 4,551 kgf better the 3DX Super on compacted and rocky ground. This lowers passes per trench and reduces overall fuel costs per job. The 1.2 m³ shovel enables operators to move 20% more material or debris per cycle, while the 148 LPM pump flow works towards faster hydraulic circles on every shift.
JCB Backhoe Loader ROI Comparison
Choose The JCB 3DX If
The JCB 3DX can be the best backhoe loader for construction work if your project profile fits the following conditions:
- Your work revolves around medium-scale urban & mixed-terrain projects with access limitations.
- If you prioritise lower upfront investment & lower depreciation risks.
- Multi-function bucket versatility reduces your reliance on optional attachments.
- Service network, uptime & spare part availability are important for operations.
Choose The 4DX If
The JCB 4DX backhoe loader makes more sense if your work meets these requirements:
- If you want to work on deep digging tasks, foundations, drainage, or pipeline projects.
- Want equipment for bulk earthmoving & material handling with the large 1.2 m³ shovel.
- You run an equipment rental business where heavy-duty equipment leads to better hire rates.
- You need a machine for quarrying, mining & large-scale infrastructure projects.
Conclusion
In any unbiased JCB backhoe loader comparison, the right equipment depends on your project types, requirements & ROI, not just the sticker price. The JCB 3DX Super excels in cost efficiency & versatility, being more affordable than the 4DX.
On the other hand, the JCB 4DX wins with its raw capabilities, durability & heavy-duty compatibility. It’s always better to match your workload against a machine; that’s where the real ROI lies.
