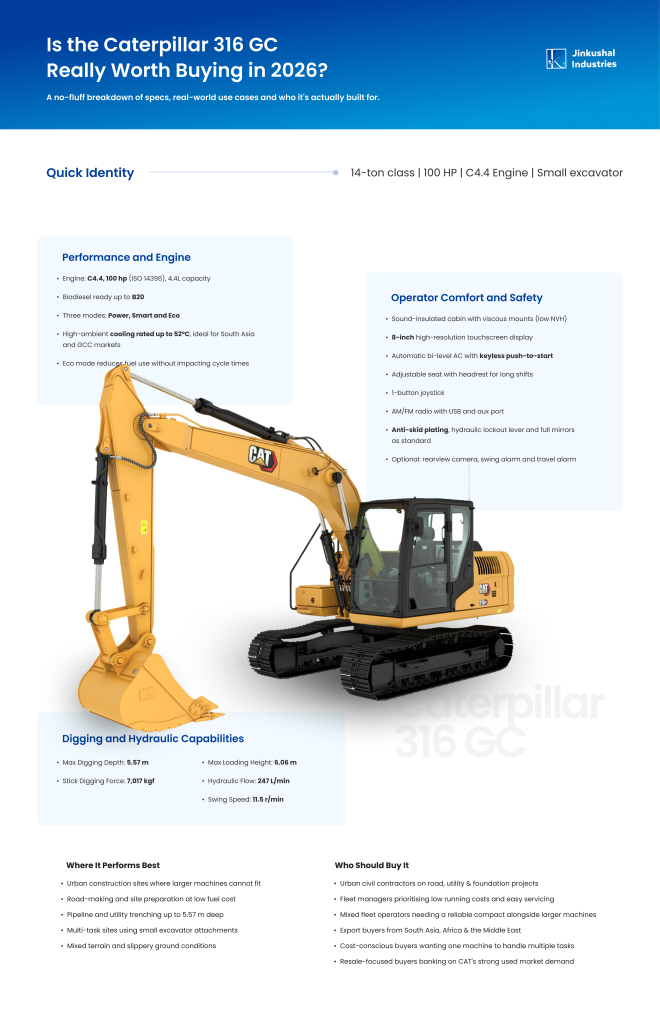

Excavators are among the most popular earthmoving and construction equipment used worldwide. These machines are available in various types, including heavy-duty, compact, long-reach & mini excavators. Given their various types, contractors often face a dilemma when choosing between a 20-ton machine or scaling down to a mini excavator. This is where small excavators like the Caterpillar 316 GC steal the limelight.

Situated in the sector of 14-ton excavators with a 100-horsepower engine, it’s one of those CAT excavators that can actually justify the investment you made for your specific use case. The Caterpillar 316 series is widely famous for its cost-effectiveness, durability, and performance, and the 316 GC continues to carry its legacy forward.

However, word of mouth isn’t always the thing to consider before purchasing. With that said, let’s take a detailed look at the Caterpillar 360 GC to find out whether it really lives up to the hype.

Performance & Fuel Efficiency

The total cost of ownership (TCO) heavily depends on fuel consumption, and the Caterpillar 316 is especially designed keeping in mind lower running costs. Underneath this machine lies the highly capable C4.4 engine, engineered to deliver 100 horsepower, which is adequate for light to medium-duty tasks. Three engine modes: Power, Smart & Eco mode, allow operators to match output to worksite demands.

On lighter tasks like backfilling or slope grading, the Eco mode reduces fuel consumption without affecting the machine’s cycle times, lowering per-hour operational costs. The 52°C high-ambient cooling rating makes the 316GC a top choice for contractors & operators using the machine in hot climates, especially in South Asia & GCC countries.

Powertrain Specs:

  • Engine Code: C4.4
  • Engine Capacity: 4.4L
  • Engine Power: 100 hp (ISO 14396)
  • Biodiesel Capacity: Up to B20
  • Engine Modes: Power, Smart & Eco
  • High-Ambient Cooling: Up to 52°C or 125°F

Durability & Capabilities

The Caterpillar 316 GC is designed with a robust undercarriage to exhibit superior performance on demanding tasks & challenging surfaces. Its undercarriage comes with centre track guiding guards, grease-lubricated track links, bottom guards & travel motor protectors. This practical structural setup, nothing fancy, is engineered for mixed terrain applications & consistent performance on long usage.

CAT excavators, badged with GC, are designed to offer consistent daily output rather than just showcasing specs on paper that degrade over time. For contractors, fleet operators & operators, it leads to reduced unplanned stops & better utilisation of the machine onsite.

  • Maximum Digging Depth: 5.57m
  • Maximum Reach At Ground Level: 8.22m
  • Bucket Digging Force: 10,033 kgf
  • Stick Digging Force: 7,017 kgf
  • Maximum Loading Height: 6.06m
  • Hydraulic System Maximum Flow: 247 L/min
  • Swing Speed: 11.5 r/min
  • Maximum Swing Torque: 25,152 ft.lbf

Pro Tip: Match the grouser shoe width with the terrain. CAT excavators like the 316 GC support between 500 and 770 mm triple grousers, which reduces undercarriage damage to extend machine life.

Operator Comfort & Safety

The Caterpillar 316 GC comes with a sound-insulated cabin with viscous mounts that reduce noise, vibration & harshness (NVH) levels to enhance operator well-being & reduce fatigue. An 8-inch high-resolution touchscreen & automatic bi-levelling AC & keyless push-to-start feature are standard features, designed for daily convenience. A mechanically adjustable seat with a headrest provides extra comfort during long shifts & reduce fatigue.

The 316 GC is among the most well-equipped small excavators in terms of safety features. Amenities like anti-skid plating with countersunk bolts, a hydraulic lockout lever, handrails & a full mirror are standard. Optional features like a rearview camera, swing alarm & a travel arm are worth considering on construction sites.

Notable Interior & Safety Features:

  • Sound-insulated cabin with viscous mounts
  • High-resolution 8-inch touchscreen
  • Manually adjustable operator seat with headrest
  • Automatic AC with bi-level feature
  • Keyless start with push button
  • 1-button joystick
  • AM/FM radio with USB & aux port
  • 70/30 tempered windscreen

After-Sales Support

CAT excavators are backed by a wide dealer & service network globally, especially in the Middle East & East Africa. The extensive network ensures excellent after-sales support & more accessible spare part delivery, which is crucial to keep the equipment running.

The Caterpillar 316 GC comes with grouped filter locations & S.O.S sampling ports, both of which slash service time & enable preventive maintenance scheduling without needing to fully disassemble the system. In terms of resale, CAT excavators consistently hold value in the used equipment market. After 5-7 years of ownership, the high resale value yields higher used equipment prices & offers a strong ROI.

Where The Caterpillar 316 GC Actually Performs Well?

  • Urban construction sites where a 20-ton machine struggles to work
  • Road-making & site preparation: this 100-hp machine handles it without demanding high fuel costs.
  • Pipeline & utility trenching: The 5.57m digging depth can cover most standard trenching & digging tasks.
  • Confined Project Sites: The compact footprint helps operators avoid frequent repositioning & reduce damage to properties.
  • Multi-task Sites: Small excavator attachments like augers, hammers, & other essential attachments allow operators to use a single machine instead of multiple specialised equipment.
  • Mixed-terrain sites: Tracked platform & robust undercarriage provide exceptional stability to work on terrains & even slippery conditions.
  • Hot-climate regions: High-ambient cooling keeps CAT excavators efficiently running in tropical climates, especially in South East Asia & Middle Eastern countries.

Who Should Buy Caterpillar 316 Small Excavators?

  • Urban Civil Contractors working on road, utility & foundation projects with space limitations
  • Fleet managers who look for machines with low running costs & snappy ground-level servicing.
  • Mixed fleet operators looking for reliable small excavators alongside larger equipment
  • Export market buyers from South Asia, Africa, & the Middle East need machines that can handle hot climates.
  • Cost-conscious buyers looking for machines compatible with small excavator attachments to reduce reliance on multiple machines.
  • Resale-focused buyers often look for CAT excavators due to their high demand & excellent resale values.
